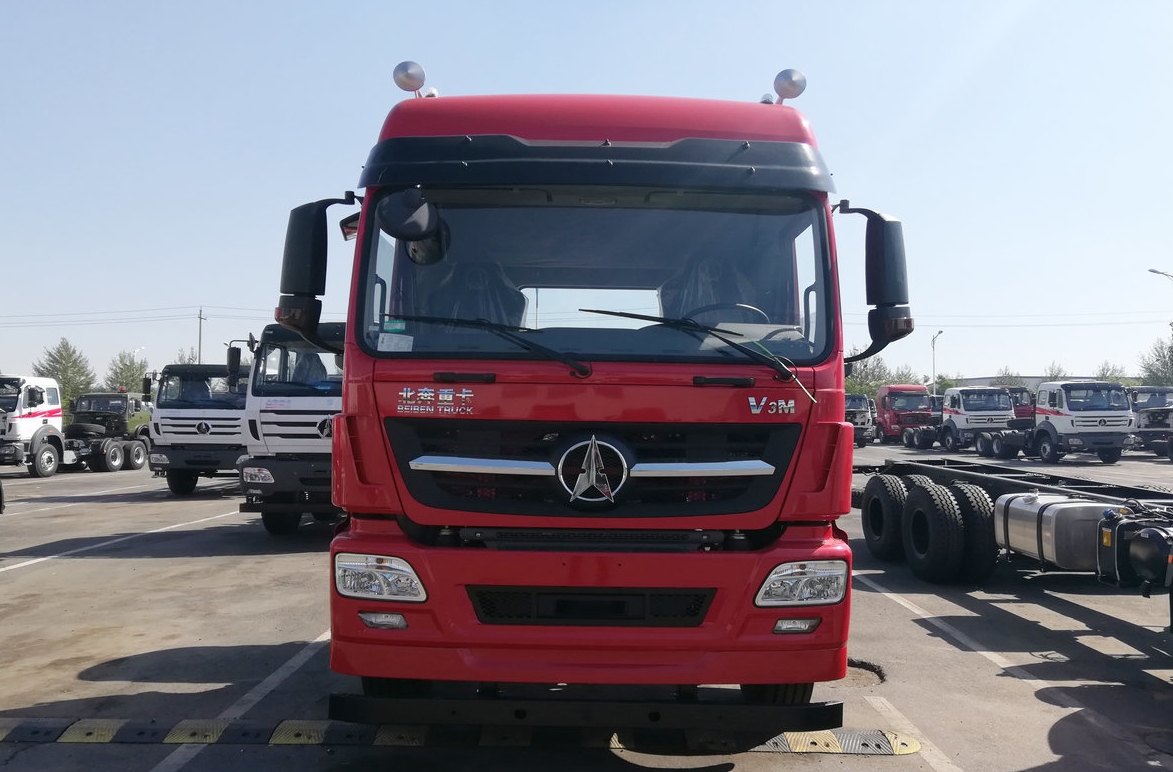

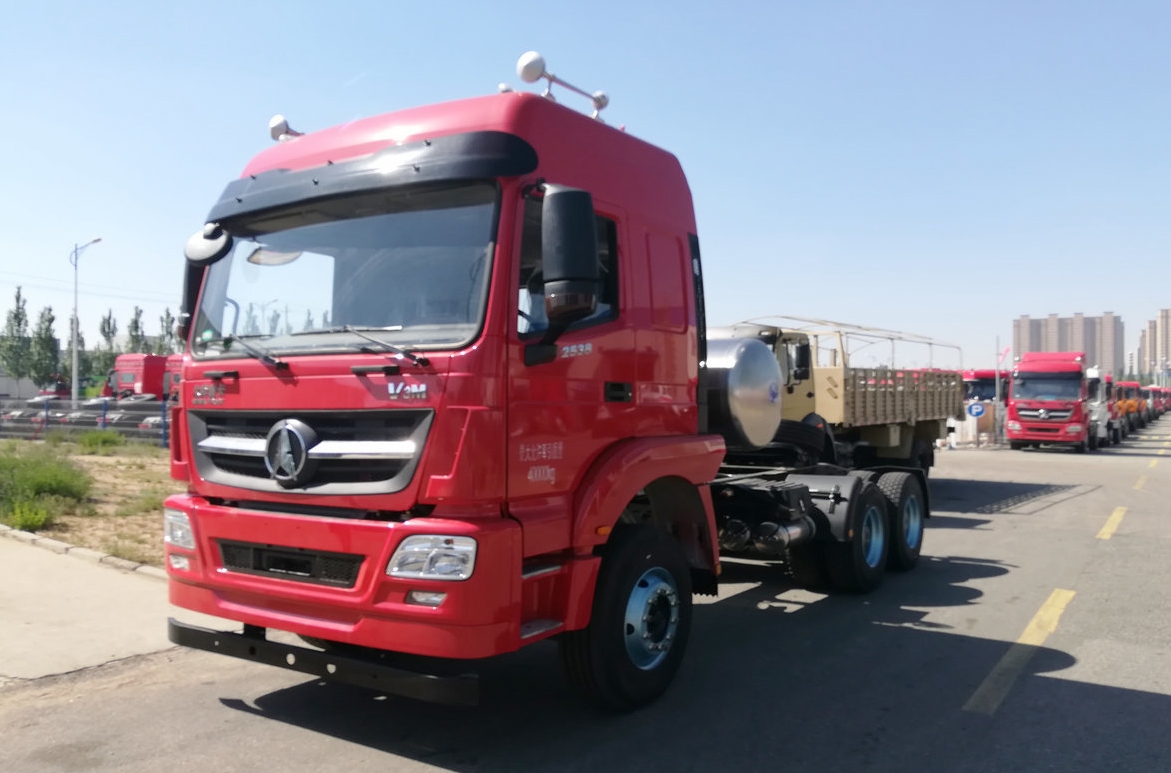

Basic Information

Announcement model:	ND4250B38J7Z00	Drive form:	6X4
Wheelbase:	3850+1350mm	engine:	Weichai WP12NG380E50
Gearbox:	Fast 12JSD200TA	Rear axle speed ratio:	4.11
Body length:	7.69 meters	Body width:	2.5 meters
Body height:	3.555 meters	Front track:	2045mm
Rear wheelbase:	1838mm	Vehicle weight:	9.68 tons
Total mass:	25 tons	Total traction mass:	40 tons
Maximum speed:	110km/h	Origin:	Baotou, Inner Mongolia
Tonnage level:	Heavy Truck	Remark:	Cab: V3M has long driving and high roof. Frame cross-section size (mm): 300×80×8
Version:	LNG version	Fuel type:	Liquefied natural gas (LNG)

Engine parameters

engine model:	Weichai WP12NG380E50	Engine brand:	Weichai
Number of cylinders:	6 cylinder	Fuel type:	Liquefied natural gas (LNG)
Cylinder arrangement:	inline	Displacement:	11.596L
Emission Standards:	National Five	Maximum horsepower:	380 HP
Maximum output power:	280kW	Maximum torque:	1500N·m
Maximum torque speed:	1400-1600rpm	Rated speed:	2200rpm

Cab parameters

Cab:	high roof	Lower sleeper width:	750mm
Allowed number of passengers:	3 people	Number of seats:	row half

Gearbox parameters

Gearbox model:	Fast 12JSD200TA	Gearbox brand:	fast
Shifting method:	Manual	Forward gear:	12 gears
Number of reverse gears:	2

tank

Fuel tank/gas tank material:

Aluminum alloy

Fuel tank capacity:

500L

Chassis parameters

Rear Axle Description:	457 single reduction bridge	Allowable load on rear axle:	18000kg
Speed ratio:	4.11	Hanging form:	leaf spring
Number of spring leaves:	3/4

tire

Number of tires:

10

Tire specifications:

12R22.5
