DFL3258AX12A 350HP 6x4-Dumper-SHIYING AUTO
| Basic Information | |
| Announcement model | DFL3258AX12A |
| Drive form | 6X4 |
| Wheelbase | 4250+1350mm |
| Body length | 9.15 meters |
| Body width | 2.5 meters |
| Body height | 3.45 meters |
| Wheelbase | Front wheelbase: 2040mm; rear wheelbase: 1880/1880mm |
| Vehicle weight | 11.91 tons |
| Rated load | 12.96 tons |
| Maximum total mass | 25 tons |
| Tonnage level | Heavy Truck |
| Remark | |
| Carton parameters | |
| Container form | |
| Carton length | 6.2-8 meters |
| Cargo box (bucket) length | 6.4 meters |
| Cargo box (bucket) width | 2.3 meters |
| Cargo box (bucket) height | 1.04 meters |
| engine | |
| engine | Dongfeng Fengshen dCi350-40 |
| Number of cylinders | 6 |
| Fuel type | diesel fuel |
| Cylinder arrangement | Four-stroke, water-cooled, in-line six-cylinder, electronically controlled common rail fuel injection, supercharged intercooling |
| Emission Standards | National IV/European IV |
| Displacement | 11.12L |
| horsepower | 350 HP |
| Output Power | 257kW |
| Torque | 1600N·m |
| Maximum torque speed | |
| Rated speed | 1900rpm |
| front wheel brake | |
| rear wheel brake | |
| remote key | |
| Electronic central locking | |
| gearbox | |
| gearbox | Fast 12JSD180T |
| Shifting method | |
| Forward gear | 12 gears |
| Number of reverse gears | |
| Number of gears | |
| Cab parameters | |
| cab | |
| Allowed number of passengers | |
| Number of seat rows | |
| tank | |
| Fuel tank/gas tank material | |
| Fuel tank/gas tank capacity | 280L |
| Chassis | |
| Front axle description | |
| Allowable load on front axle | |
| Rear axle description | 13 tons wheel speed reduction double rear axle (Dongfeng 300) |
| Allowable load on rear axle | 18000(double axle installed)kg |
| rear axle ratio | 5.26 |
| Number of spring leaves | 10/13 |
| tire | |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
Position：Home / product / Dumper

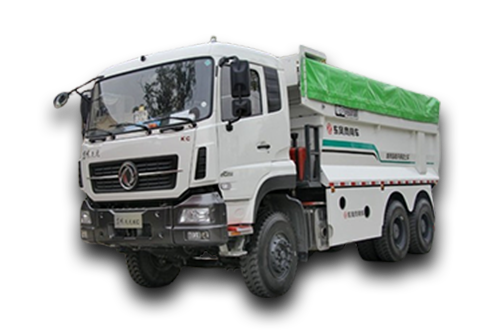

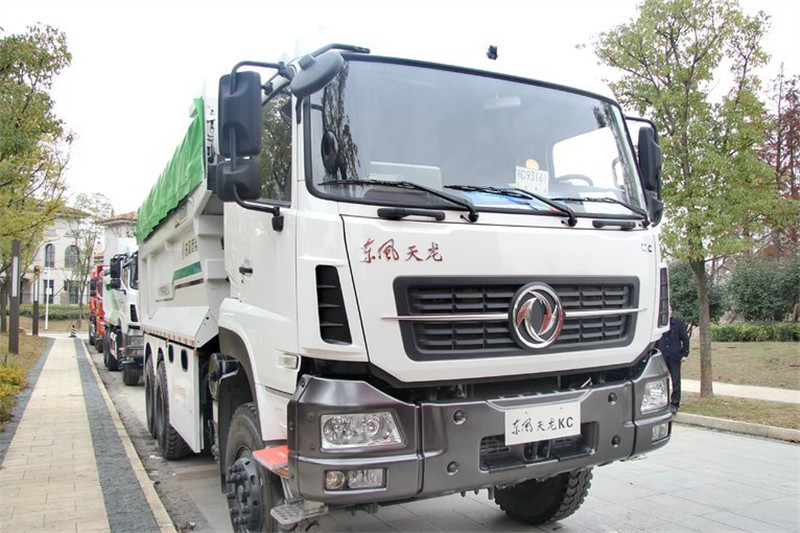

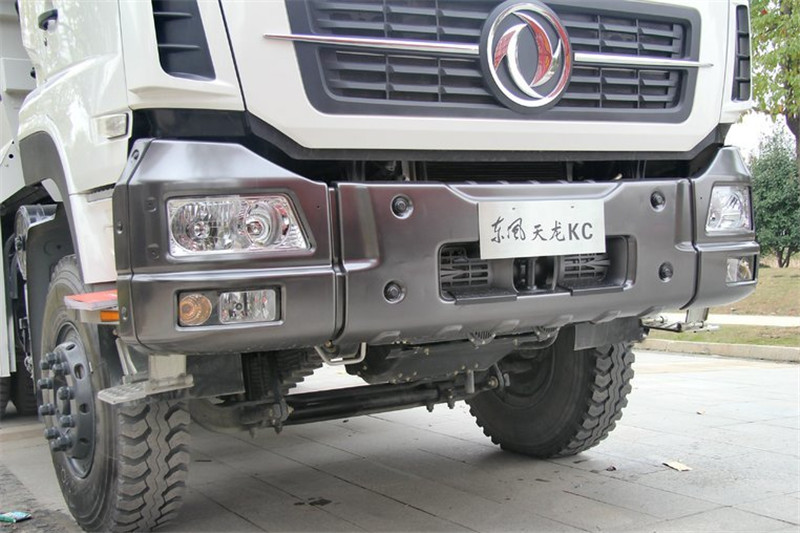

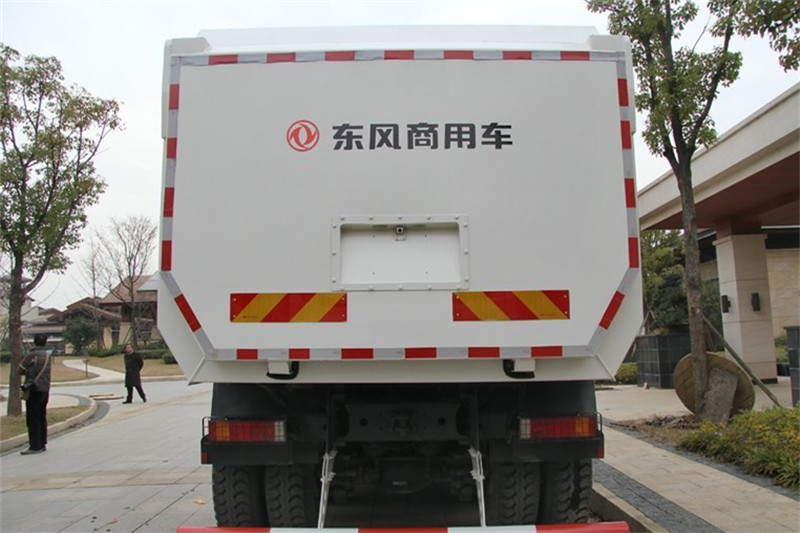

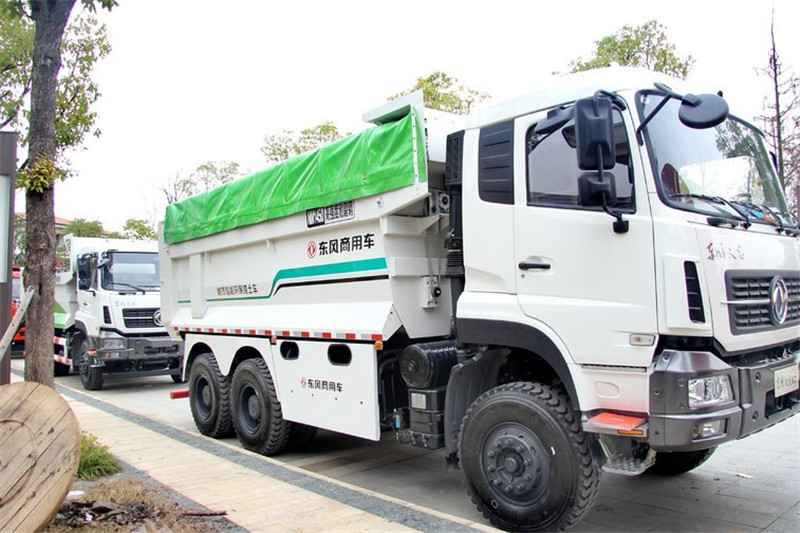

DFL3258AX12A 350HP 6x4
Tianlong Heavy-duty Truck 350HP 6x4 6.4m Euro IV Dump Truck(DFL3258AX12A)
Customer Support
+86-13264883111
Email me
service@sysyqc.com
Description
The product is constantly improving and the configuration parameters are constantly updated. We reserve the right to change the design and parameters without informing the user; The configuration and appearance of the product shall be based on the actual product.
